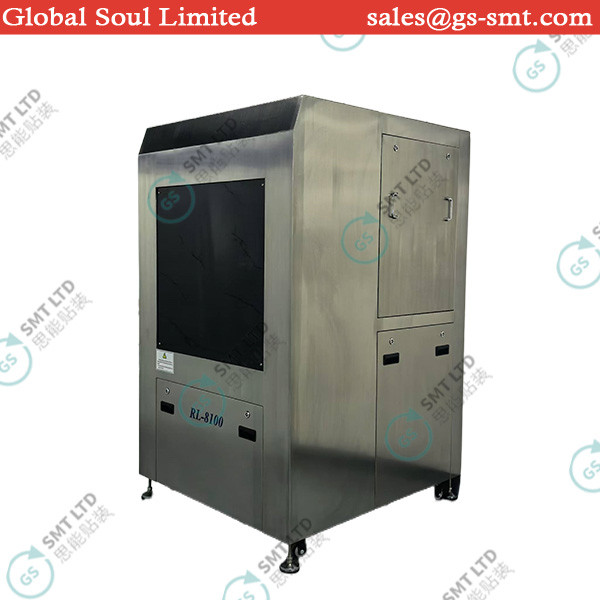

25KW Electric Steel Mesh Cleaning Machine for SMT 750x750mm

Brand Name : GS

Model Number : RL-8100

Place of Origin : China

MOQ : 1 PCS

Price : USD+negotiable+pcs

Payment Terms : T/T

Supply Ability : 1+pcs+per days

Delivery Time : 1-7 days

Packaging Details : 1400*1350*2000mm

Applicable steel mesh size : L750 × W750 × H40(mm) [large size needs to be customized]

Equipment dimensions : L1220*W1120*H1850 (mm)

Maximum volume of liquid tank : 50L*2PCS

Optimal liquid usage : 40L*2PCS

Cleaning, rinsing, drying method : left and right mobile high pressure spray cleaning + high pressure hot air cutting (optional super model)

Cleaning solution isolation time : 40 to 60S

Cleaning time : 2-5min

Drying time : 2-5min

Filtration system (Level 1) : Level 1 filter element filtration: (Filter impurities and labels)

Filtration system (secondary) : secondary filter filter: (filter solder paste and rosin particles)

Cleaning liquid recovery filter (Level 3) : 1μm (Filter particles: solder paste, rosin, red glue and pollutants)

Rinse liquid discharge filtration (Level 3) : 5μm (filter particles: solder paste, rosin, red glue and pollutants) solution

Body heating temperature : room temperature ~ 60℃ (temperature can be set)

Electric external air source : 0.4 ~ 0.6 (Mpa)

Water pressure : 0.2 ~ 0.3(Mpa)

Exhaust port size : Φ125×H25(mm)

Power supply : AC380V 50HZ

The total power : 25KW

Net weight : about 580Kg

Condition : Original New

Contact Now

Machine characteristics
● High pressure spray system specially used for water based cleaning liquid cleaning screen board, misprint board, printing machine scraper, etc.
● Double liquid tank, equipped with heating system, to meet the needs of cleaning, rinsing and hot air drying.
● Process flow: cleaning - chemical isolation - rough rinsing (open/closed loop) - fine rinsing (open/closed loop) - drying.
● Advanced automatic touch screen operating software, program file saving, use and simplification.
● The system counting function can automatically accumulate the number of cleaning boards and the number of cycle filtering.
● Liquid and pump pressure can be displayed through the panel pressure gauge, timely feedback equipment operating status.
● Spray pressure is monitored by pressure sensor, which will alarm if it exceeds the set pressure range.
● Liquid direct reflux, reduce liquid consumption
● The whole stainless steel body is durable, resistant to acid, alkaline and other cleaning fluids.
● High pressure fan + hot air drying, drying effect is faster and more thorough.
● Lower operating costs, each cleaning only 30-120ml liquid, the end of the cleaning using compressed air to recover the pipeline and pump residual liquid, can reduce liquid consumption by 50%.
